Recommend

UM06

The UM06 series high-voltage power supply can achieve a maximum power of 30KW per unit and an output voltage of up to 160KV. Mainly used in high-voltage capacitor charging, remote transmission power supply, laser, radar, accelerator, non-destructive testing NDT and other equipment

more Pdf file download

MXRN

The MXRN series negative high-voltage power supply is a specialized negative high-voltage power supply for X-ray machines, and the anode of the ray tube is grounded for easy heat dissipation. It integrates a floating adjustable filament power supply. The power output is stable and high voltage with low temperature drift. The filament power supply and tube current are closed-loop controlled, mainly used for fluorescence analysis, RoHs instruments, thickness gauges, etc.

more Pdf file download

MSPN

The output voltage of the MSPN series variable polarity high-voltage power supply module ranges from ± 1KV to 5KV, and polarity switching can be controlled. The polarity switching time is ≥ 400ms, the switching stability time is ≤ 100ms, and the ripple voltage is less than 0.1% of the output voltage. The working temperature range is -40 ℃ to+70 ℃

more Pdf file download

IXR05

The IXR05 ray source can work well in the anode grounded X-ray tube working mode The heat dissipation ensures reliable operation, with a working voltage range of negative 4kV-50kv, and can be adjusted to different focal pointsMicro focus selection to meet the practical application needs of X-ray machines, mainly used for imagingDefect detection, security inspection, nondestructive testing, fluorescence analysis, thickness gauge, etc.

more Pdf file download

IXR08

The IXR0801 ray source is an anode grounded X-ray tube that can effectively dissipate heat and ensure reliable operation. The working voltage is within the range of negative 20kV-80kv, and it can be used for selecting large and small focal points and micro focal points to meet the practical application needs of X-ray machines. It is mainly used for imaging defect detection, security inspection, non-destructive testing, thickness gauges, etc

more Pdf file download

UMP04

Output voltage single pole 0-15KV, bipolar 0- ± 7.5KV adjustable, maximum output current 50A, pulse group work repetition frequency continuously adjustable from 0.1Hz to 10Hz, voltage and current adjustable from zero to the highest range, pulse number continuously adjustable within the pulse group, from 1 to 100 pulses, single pulse width continuously adjustable within each group, from 5 μ S to 100 μ S is continuously adjustable, capable of continuously outputting 1 to 1000 pulse sets. The panel is equipped with 6 controlled output ports, and all parameters are controlled and collected by computer for feedback.

more Pdf file download

TXB02

RS485 MODBUS-RTU communication protocol with isolation communication standard, 0-10V12 channels of 12 bit analog input, 8 channels of analog output, 12 channels of switch input and output, main control core STM32F103 series microcontroller, dual isolation RS485 communication can communicate with two upper computers simultaneously

more Pdf file download

TXB01

The TXB01 multifunctional communication control board is designed with a compact structure, small size, and adopts a bare board pin structure. It can be used for the installation of internal circuit board pins (plug-in boards) to achieve communication control of the product and system,

more Pdf file download

XRT120x-ray tube

The XRT1201 series anode grounded X-ray tube has a working voltage range of negative 20kV-110kv, large and small focus, exposure power of 0.1s, small focus of 1270W/large focus of 5300W, mainly used for CT systems, non-destructive testing, and so on.

more Pdf file download

MXCT

The portable X-ray machine's high-voltage power supply adopts a higher frequency high-voltage boost circuit, which can be miniaturized and has a higher power density to achieve 80KV, 100mA, and a fast rise and fall time of high voltage within 20ms. The duty cycle of the full load continuous working mode can be more than 10%, and the maximum exposure time is 100s. The computer communication control provides complete testing software and source code for secondary development

more Pdf file download

UM03

UM03 series high-voltage power supply 2KW~20KW, 1KV~200KV optional

more Pdf file download

MXR

The MXR series DC high-voltage power supply is mainly used for X-ray generators and has a high power and voltage range to choose from, providing complete control and detection signals to meet the needs of practical applications. It can output stable small ripple voltage and current, mainly used for X-ray fluorescence analysis, thickness measurement, and imaging inspection etc.

more Pdf file download

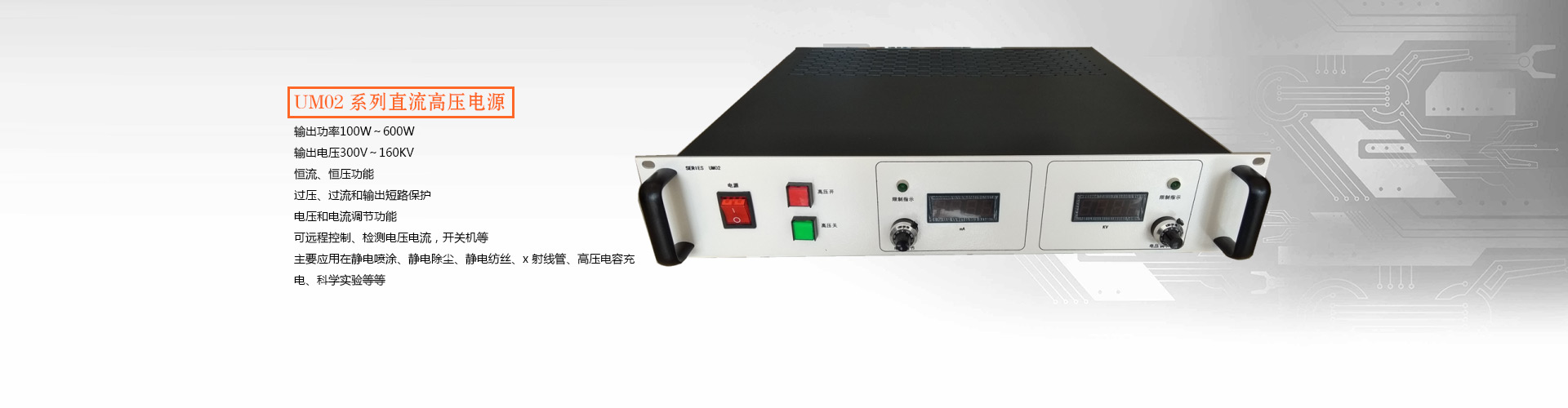

UM02

The UM02 series DC high-voltage power supply has higher power and voltage range options, providing complete control signals and various auxiliary functions to meet the needs of various practical applications. It can output stable small ripple voltage and current, mainly used in static electricity, X-ray diffractometer, high-voltage capacitor charging, science Experiments, etc.

more Pdf file download
